Royal Metal Panels

Our panels deliver a striking appearance, exceptional durability, affordability, and energy efficiency. With five distinct profiles, all manufactured in-house and available in 19 vibrant colors, you can customize your project to match your vision. Our panels are available in gauge capacities of 24GA, 26GA, and 29GA, backed by limited paint warranties of up to 40 years. Whether for your home or warehouse, you can rely on Royal Metal to provide long-lasting value, protection, and minimal upkeep.

Exposed Fastener Panels

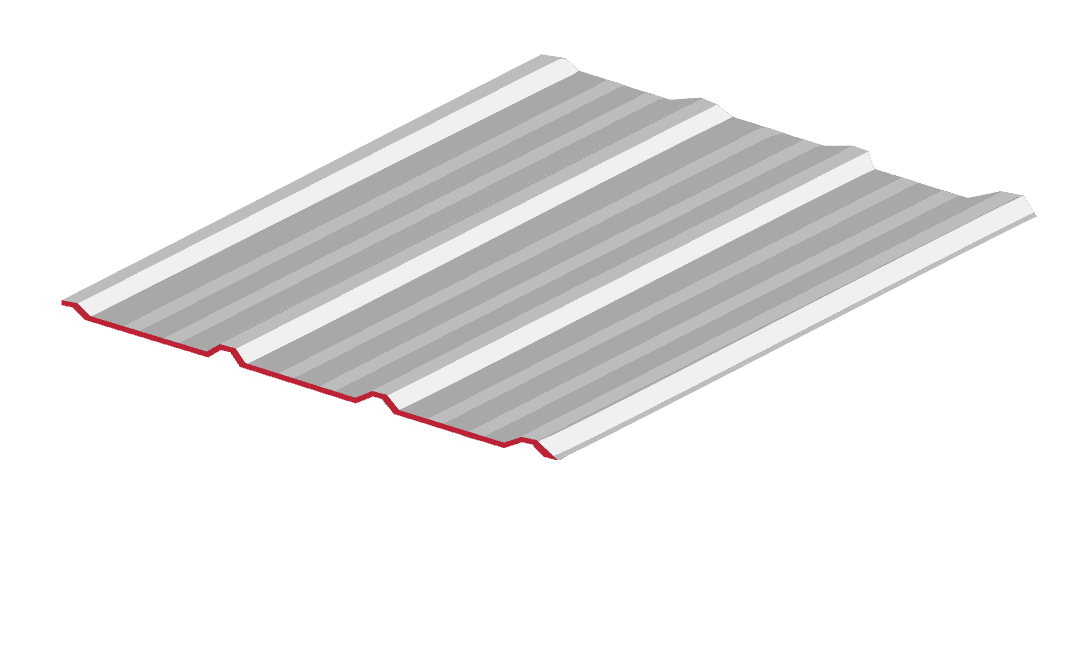

Royal Span X

Our Royal Span X panel provides 36" of coverage, making it perfect for a wide range of building and roofing applications.

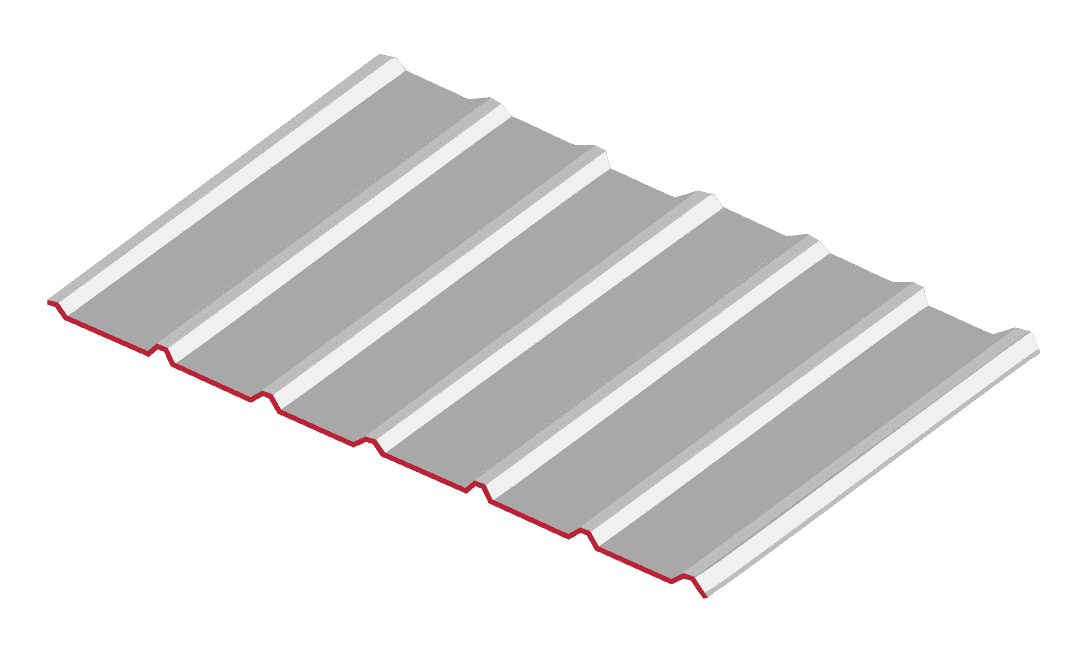

Royal Rib X

Our Royal Rib X panel provides 36" of coverage, making it perfect for a wide range of building and roofing applications.

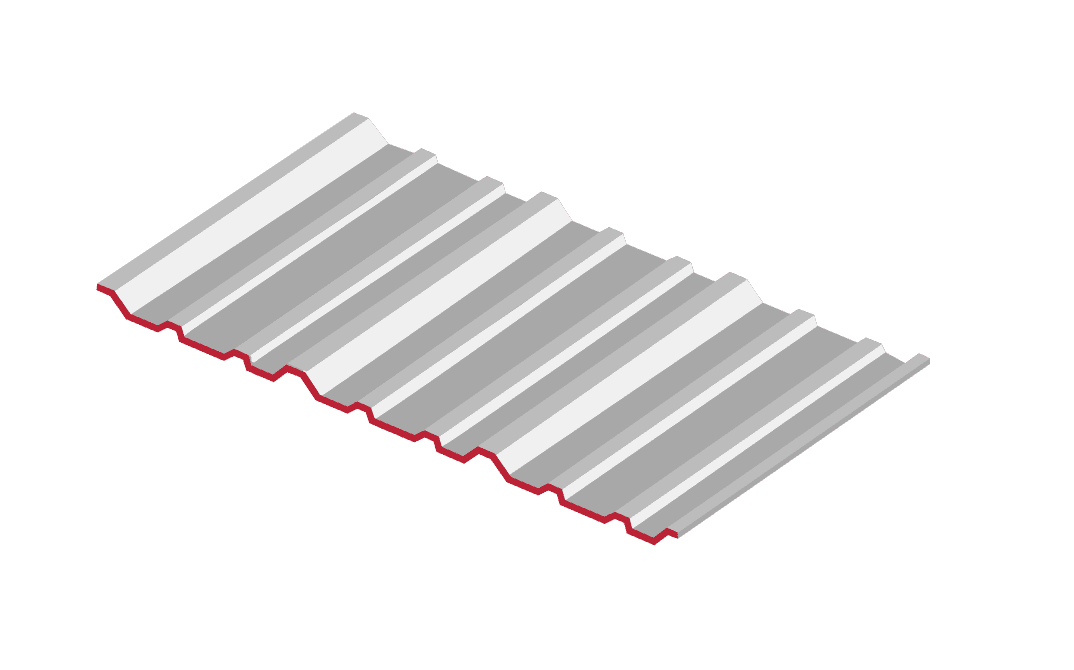

Tex-Rib

Our Tex-Rib panel provides 36" of coverage and is a great look for residential & agricultural applications.

  • 26 Gauge steel coated both sides with a layer of (Galvalume) aluminum-zinc alloy applied by the continuous hot dip method. Colored panels are coated with Sherwin-Williams WeatherXL coating system. The coating is a high performance silicone polyester paint system which is applied over a primed surface.

The same gauge, color, and finish is used for all trim material.

  • Panel lap conditions are sealed using a butyl-based tape mastic that is non-staining, non-corrosive, non-volatile and non-toxic.
  • Fasteners for panel connection to steel substructure are #12 X 1” or #12 X 1-1/4” self-drilling screws with uni-seal washers. Panel installation to wood substructure would use #10 X 1” or #10 X 1-1/2” Woodbinder screws. Lap Screws, #14 X 7/8”, are also necessary for proper panel installations.
  • Roof Slope to be a minimum ½:12. Endlaps must be a minimum of 4”. All roof panel laps should utilize butyl tape to provide weather-tightness. Wall panel applications are also possible with the panel.

40yr Limited Color Panel Warranty and 25yr Limited Bare Panel Warranty

  • Yearly roof inspections and gutter cleaning as needed.
  • Call any Royal Metal Building Components Office.

Concealed Fastener Panels

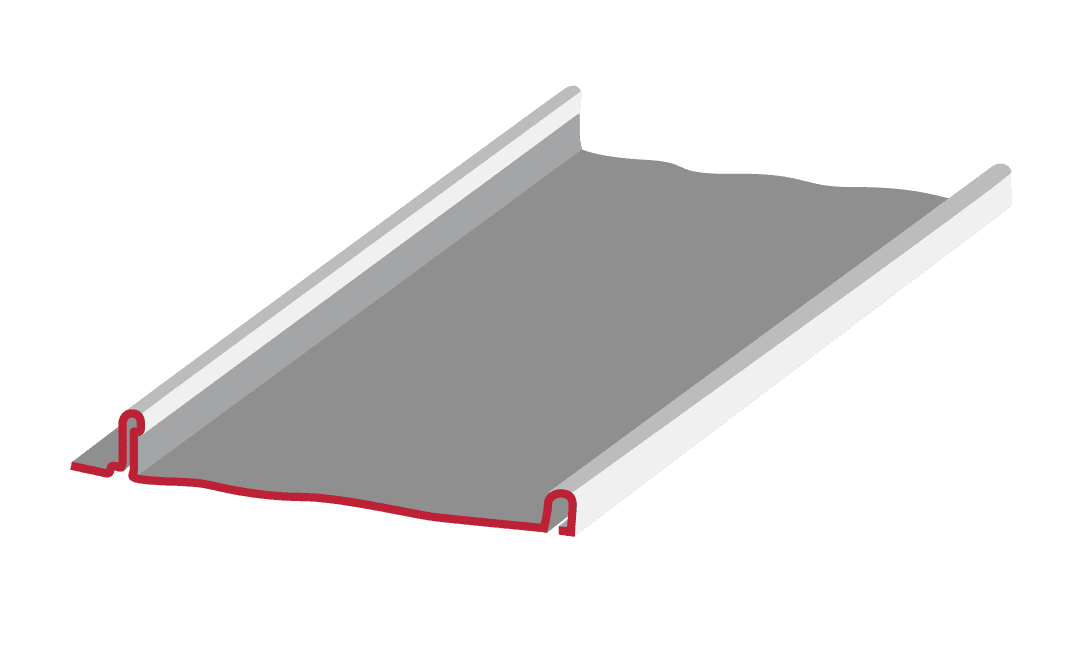

Royal Strip

Our Royal Strip panel systtem provides 15" of sleek coverage. This residential, snap-lock system is available....

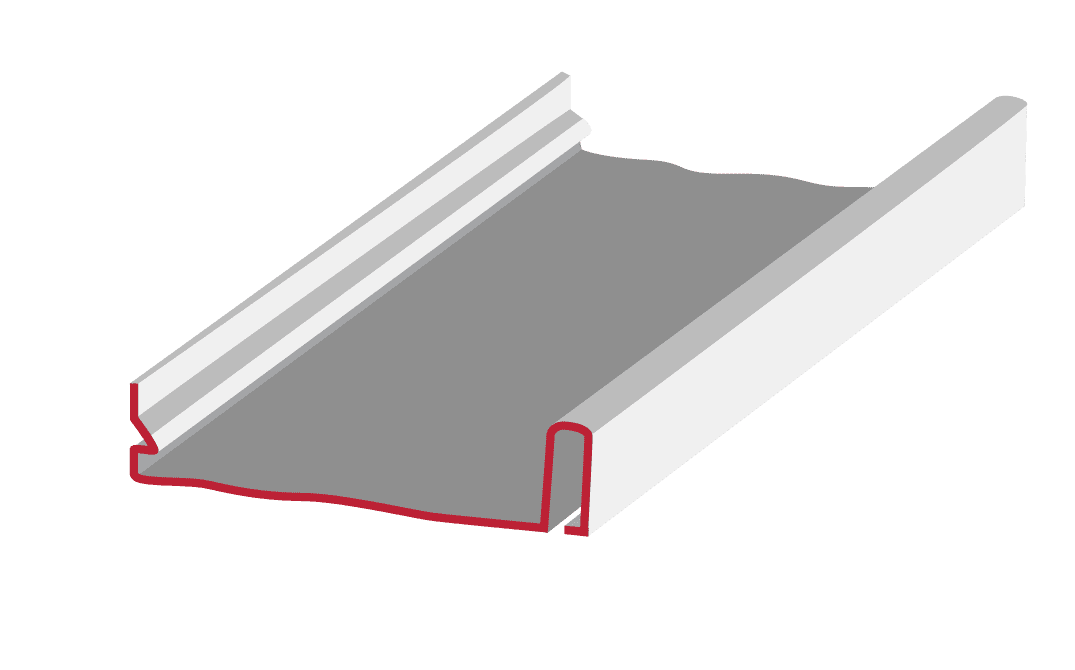

Royal Seam

Our Royal Seam provides 16" of sleek coverage and is installed using a heavy duty, wind rated clip system.

ROYAL METAL

Buildings, Panels, Trim, Steel, & More!

Royal Is Ready To Help

You can expect a superior experience with Royal MBC. Whether your next project involves a metal roof or a metal building, you’ll find everything you need with Royal.

  • Family owned and operated since 1995
  • A complete line of metal panels & trim, steel products, and other accessories.
  • Experienced sales team ready to help you every step of the way.
Need a quote? Fill out the form below, give us a call,
or stop by one of our five locations!
